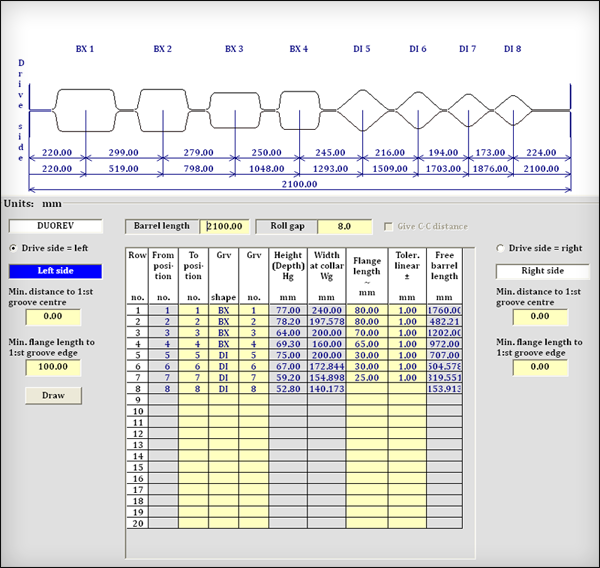

Plot roll is a "CAD" program specially designed for making groove drawings, roll drawings and groove plans. It is easy and much faster to use and also compatible with other common CAD programs. It can also be used as the initial data for CAM

programs. When a roll drawing is created groove dimension is called from the Groove database and automatically added in to the roll drawing which then directly can be printed or saved as CAD file.
